Double Seal (SS Reactor)

Seal Type 510/D and 510/D/B Mechanical Seals are designed for Top, Side and Bottom Entry Drives in Agitators and Reactors. Compact Economical Cartridge Double Mechanical Seal for Agitators and Reactors. Seal Type 510/D/B Design Incorporate with location of Bearings very close to the Seal. These Seal specially designed for any mixed and pressurized liquid in Vessel with Top Entry Agitators where no leakage in Process Gas OR Fluids to the Environment can be tolerated. Complete Pre-assembled Tested Unit ready for installation. These Seal are used for Exclusive Solid Seal Faces, Stationary Seats, thus Lowest Level of Seal Face distortion when Expose to Compressive Load and Thermal Pressure..

  • Features:
    • Balance Pusher Seals using for Sealing Environment.
    • Double Seals are excellent with Low RPM Operation in Full Vacuum and Pressure.
    • These Seals are a Multiple Spring Back to Back Arrangement with 'O' Ring as secondary Sealing member.
    • The design may either without bearing (Type 510/D) or with integral bearing (510/D/B). Various Elastomer can be offer for various Liquid applications.
  • Materials
    • Seal Ring Faces : Carbon and SiC
    • Seat Faces : SiC and TC
    • Elastomer : Viton, TTV, FEP and FFKM
    • MOC : SS 316 - CHANGE OF MOC ON REQUEST
  • Operating Capabilities
    • Shaft Dia. : 25mm to 200mm
    • Pressure : Full Vacuum to 30 bar
    • Temperature : -30oC to 260oC (Depending upon Elastomer)
    • Speed : 300 r.p.m.

Double Seal (SS Reactor)

image not found

Double Seal (SS Reactor)

image not found

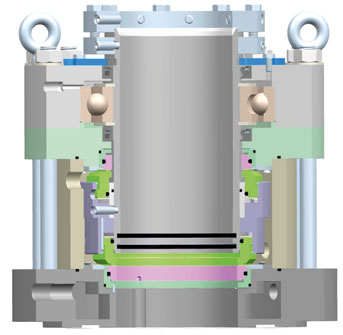

Double Seal (Hydrogenerator)

Seal Type 511/D/B Mechanical Seals are designed for Top Entry Drives in Hydrogenators. Seal Type 511/D/B Design Incorporate with location of Bearings very close to the Seal. These Seal specially designed for any mixed and pressurized liquid in Vessel with Top Entry Agitators where no leakage in Process Gas OR Fluids to the Environment can be tolerated. Complete Pre-assembled Tested Unit ready for installation. These Seal are used for Exclusive Solid Seal Faces, Stationary Seats, thus Lowest Level of Seal Face distortion when Expose to Compressive Load and Thermal Pressure.

  • Features:
    • Balance Pusher Seals using for Sealing Environment.
    • Double Seals are excellent with Low RPM Operation in Full Vacuum and Pressure.
    • These Seals are a Multiple Spring Back to Back Arrangement with 'O' Ring as secondary Sealing member.
    • The design with integral bearing. Various Elastomer can be offer for various Liquid applications.
    • The Cooling Chamber of Seals also having a Standard Feature with helps to maintain Cool Environment around the Seal.
  • Materials
    • Seal Ring Faces : Carbon and SiC
    • Seat Faces : SiC and Ceramic
    • Elastomer : Viton, TTV, FEP and FFKM
    • MOC : SS 316 - CHANGE OF MOC ON REQUEST
  • Operating Capabilities
    • Shaft Dia. : 25mm to 200mm
    • Pressure : Full Vacuum to 50 bar
    • Temperature : -30oC to 260oC (Depending upon Elastomer)
    • Speed : 400 r.p.m.

Double Seal (Hydrogenerator)

Double Seal (Hydrogenerator)

Double Seal (Hydrogenerator)

Double Seal (Hydrogenerator)
