Multi Spring Seal - 51U & 52U

Multi Spring Seal - 51U & 52U
Ask for Price

Multi spring seal - 51U & 52U is widely used for various clean media application. These find their wide applications for the procession of corrosive liquids. Its PTFE wedge construction of the secondary sealing member makes these applicable for various universal services. These are designed with whole Rotary Parts with snap rings which make these very easy to install and remove. These are extensively used for various low aggressive chemicals, petroleum products and refrigerants in different centrifugal pumps and other allied devices.

We provide the unbalance pusher seals in single and dual specifications. The components in cartridge ensure its maximum efficiency and reliability. Besides, these are attached with Flushing Ports which helps to reduce the Heat for uniform face cooling. Its Seal Type 51U is 'O' ring seal design which helps to eliminate scoring on shaft and sleeve area and further use of 'O' ring design is depends on suitable application. These devices ensure easy installation, less maintenance cost and longer service life.

  • Features:
    • Mechanical seal drive - reduces slippage on shaft or sleeve to eliminate galling and premature wear
    • Components in cartridge design are builds for the highest reliability and simple installation
    • Seal type 52U is wedge design which helps to creates positive seal use in extreme temperature, chemical application
    • Using of suitable coating on sealing area to eliminate scoring on shaft and sleeve
    • Effective usage
    • High functional efficiency
  • Materials
    • Seal Ring Faces : Cabon, GFT, SiC and TC
    • Seat Faces : Ceramic, SiC and TC
    • Elastomer : Viton, PTFE, GFT, EPDM, NBR, Buna-N and FFKM
    • MOC : SS 316, Hast -C and Alloy - 20
  • Operating Capabilities
    • Shaft Dia. : 10mm to 100mm
    • Pressure : Up to 10 bar
    • Temperature : -20oC to 260oC (Depending upon Elastomer)
    • Speed : 3000 r.p.m.

Multi Spring Seal - 51U & 52U

Multi Spring Seal - 51U & 52U

Multi Spring Seal - 51U & 52U

Multi Spring Seal - 51U & 52U



Multi Spring Seal - 51B & 52B

Multi Spring Seal - 51B & 52B
Ask for Price

Multi spring seal - 51B & 52B is engineered using best available techniques and following international industrial standard. These are widely used for clean media applications. These are widely used for the processing of corrosive liquids. These are admired for its PTFE wedge construction of secondary sealing member, which make these ideal for universal service applications. These are designed with whole rotary parts and snap ring which make these very easy to install, operate and maintain.

These are extensively used for various petroleum products, refrigerants, low aggressive chemicals and many other allied products in various centrifugal pumps and many other allied types of equipment with rotating shafts. These can be availed in single and dual configuration following the requirements and demands. Its mechanical seal drive is especially designed to reduce slippage on shaft or sleeve to eliminate galling and premature wear.

  • Features:
    • Hydraulically balanced seal permits using in higher pressure as well as it creates low heat generated on faces and provides long life
    • Seal type 52B is wedge design which helps to creates positive seal use in extreme temperature, chemical application
    • Using of suitable coating on sealing area to eliminate scoring on shaft and sleeve
    • Flushing ports helps to reduce the heat for uniform face cooling. Seal type 51B is 'O' ring seal design helps to eliminate scoring on shaft and sleeve area
    • Use of 'O' ring seal design is depends on suitable applications
  • Materials
    • Seal Ring Faces : Cabon, GFT, SiC and TC
    • Seat Faces : Ceramic, SiC and TC
    • Elastomer : Viton, PTFE, GFT, EPDM, NBR, Buna-N and FFKM
    • MOC : SS 316, Hast -C and Alloy - 20
  • Operating Capabilities
    • Shaft Dia. : 10mm to 100mm
    • Pressure : Up to 25 bar
    • Temperature : -20oC to 260oC (Depending upon Elastomer)
    • Speed : 3000 r.p.m.

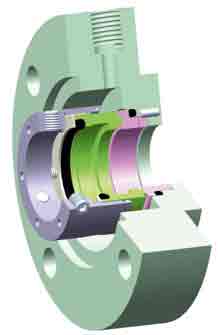

Multi-Spring-51B-52B.3D

Multi Spring Seal - 51B & 52B

Multi-Spring-51B-52B-Draw-Big

Multi Spring Seal - 51B & 52B
