Seal Support System

Seal support system is ergonomically engineered under the strict supervision of experienced quality controllers. These are widely recommended by clients owing to its application specific design and robustness. These can be availed in various technical specifications, range, dimensions and other specifications following the precise demands and requirements of clients. Owing to its consistent performance, these are widely recommended by various numbers of clients.

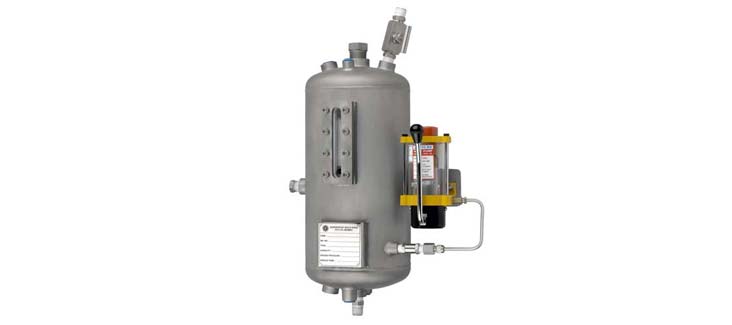

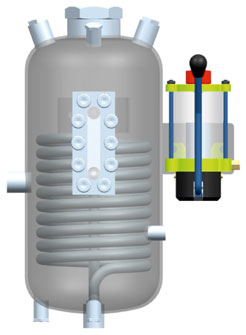

Thermosyphone System - TS 20 & TS 40

Thermosyphone system - Ts 20 & Ts 40 is available in various technical specifications. These are made under the firm direction of experienced quality controllers. Owing to its precise design, sturdiness and robustness, these devices are widely recommended by various numbers of clients. These are acclaimed for longer service life, precise design and effective usage. These are available in various ranges.

Thermosyphone System - TS 20 & TS 40
Ask for Price

Seal Support System - Thermosyphon System are carefully designed and manufactured with great precision and care. Please Visit us to see our full range of Seal Support System - Thermosyphon System to meet all your requirements. We are the manufacturer of Seal Support System - Thermosyphon System in Mumbai INDIA.

  • Features:
    • The Thermosyphon provides lubrication, dissipate heat and maintain the temperature and required pressure gradient across the seal faces in case of double back to back and tandem seal arrangement for pumps and agitators.
    • Plan 52 and 53A configurations. Economical light and heavy duty reservoir for general service applications.
    • Instrumentation on each reservoir is according to local standards and can be adapted to suit application and customer requirements.
    • 304 and 316 stainless steel construction. Cooling coil is optional.
  • Materials
    • MOC: SS 316, SS 304 and MS
  • Operating Capabilities
    • TS 20 Pressure Limit : 20 bar
    • TS 40 Pressure Limit : 40 bar
    • Temperature: Up to 200oC

Thermosyphone System - TS 20 & TS 40

Thermosyphone System - TS 20 & TS 40
