Balance Cartridge Seal - 55B/C

Balance cartridge seal - 55B/C is widely used for clean media applications. These are engineered with mechanical seal drive which reduces slippage on shaft or sleeve to eliminate galling and premature wear and its heavy duty seal faces remain flat during operation to minimize leakage.

These are ideal to use for the processing of corrosive liquid. Its seal design with whole rotary parts with snap rings makes these very easy to install and remove. These are widely used for petroleum products, low aggressive chemicals and refrigerants in centrifugal pumps and other equipment with rotating shafts.

  • Features:
    • Dual directional
    • Components in cartridge design are builds for the highest reliability and simple installation
    • Hydraulic balance seal permits using higher pressure as well as it create low heat generated on faces and provides long life
    • Flushing ports helps to reduces the heat for uniform face cooling
    • Advance designed spring holder pimping ring of flushing spring area
    • Easy-to-fit design
  • Materials
    • Seal Ring Faces : Cabon, TC and SiC
    • Seat Faces : SiC and TC
    • Elastomer : Viton, PTFE, and FFKM
    • MOC : SS 316, Hast -C and Alloy - 20
  • Operating Capabilities
    • Shaft Dia. : 10mm to 100mm
    • Pressure : Up to 35 bar
    • Temperature : -30°C to 260°C (Depending upon Elastomer)
    • Speed : 3000 r.p.m.

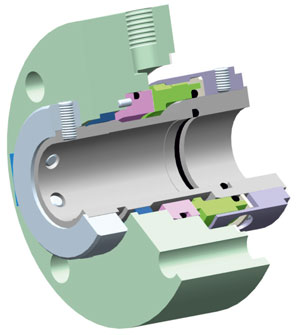

balance-cartridge-type-55b-c-3d

image not found

balance-cartridge-type-55b-c-draw-big

image not found

Technical Specifications

SHAFT SIZE



D

SEAL SIZE

D1

D4

L11

L12

inch

mm

12.70

0.875

22.22

43.60

35.70

51.60

14.30

0.937

23.80

44.45

35.70

51.60

15.85

1.000

25.40

46.80

35.70

51.60

19.00

1.125

28.58

50.00

37.30

51.60

20.65

1.250

31.75

53.15

36.50

52.40

22.25

1.375

34.92

56.30

36.50

52.40

Due to continuous improvement specifications and dimensions may change without prior notice.
