Double Semi Cartridge - ZR100/D

Designed to handle solids up to 20% by weight. Hydraulically balanced faces for excellent seal reliability. Springs are located outside the process. Flushing helps to lubricate or cool the seal faces from atmospheric side of mechanical seal. They are cost effective for basic application such as Centrifugal Pumps and other Equipment with Rotating Shaft, Handling Crystallizing Slurry, Suspended Solid Slurry, Saturated Chemical Slurry, General Chemical Slurry.

Double Semi Cartridge - ZR100/D

image not found

  • Features:
    • Slurry seal.
    • Standardized modular design.
    • Single Acting. .
    • Mechanical Seals.
    • Inside Mounted
  • Materials
    • Seal Ring Faces : SiC, Carbon and TC
    • Seat Faces : SiC and TC
    • Elastomer : Viton, TTV, FEP and FFKM
    • MOC : SS 316 - CHANGE OF MOC ON REQUEST
  • Operating Capabilities
    • Shaft Dia. : 20mm to 80mm
    • Pressure : Full Vacuum to 8 bar
    • Temperature : -30oC to 260oC (Depending upon Elastomer)
    • Speed : 3000 r.p.m.

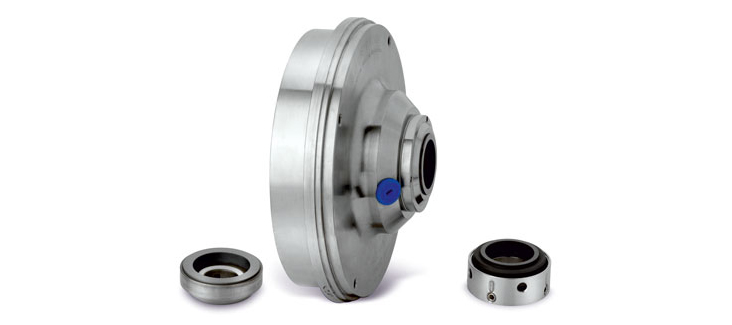

Double Semi Cartridge - ZR200/D

Designed to handle solids up to 60% by weight. Specially designed stuffing box in this particular seal type ZR200/D which gives better seal life and performance. Hydraulically balanced faces for excellent seal reliability. Springs are located outside the process. Flushing helps to lubricate or cool the seal faces from atmospheric side of mechanical seal. They are cost effective for basic application such as Centrifugal Pumps and other Equipment with Rotating Shaft, Handling Crystallizing Slurry, Suspended Solid Slurry, Saturated Chemical Slurry, General Chemical Slurry

slurry-seal-for-non-metallic-pump-type-zr300-51u-p-ims-draw-big

Double Semi Cartridge - ZR200/D

  • Features:
    • Slurry seal.
    • Double seal for Non metallic pump.
    • Standardized modular design.
    • Inside Mounted
  • Materials
    • Seal Ring Faces : SiC and Carbon
    • Seat Faces : SiC
    • Elastomer : Viton, TTV, FEP and FFKM
    • MOC : SS 316, PVDF - CHANGE OF MOC ON REQUEST
  • Operating Capabilities
    • Shaft Dia. : 20mm to 80mm
    • Pressure : Up to 8 bar
    • Temperature : Up to 120oC
    • Speed : 3000 r.p.m.
  • Applications
    • Specially developed for steel plants on CRM (Cold Rolling Mill) in acid circulation pumps for PP, PVDF & PFA Lining Pump.
